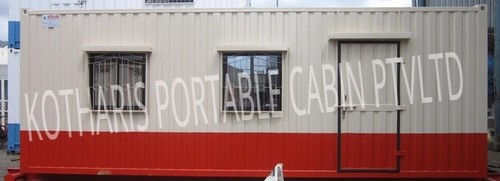

GI PORTABLE Site Office CABINS

Name: GI PORTABLE Site Office CABINS
Brand: KOTHARIS PORTABLE CABINS PVT. LTD.
Price: 75000- 200000
Availability: InStock

Price 75000- 200000 INR/ Piece

Get a Price/Quote

MOQ : 1 , , Piece

GI PORTABLE Site Office CABINS Specification

Open Style
Sliding / Hinged

Dimension (L*W*H)
Standard: 20 ft x 10 ft x 8.5 ft (Custom sizes available)

Window Material
Powder Coated Aluminium Sliding Windows with Glass

Door Material
Mild Steel Frame with GI Sheet Panel

Wall Materials
Pre-coated Galvanized Iron Sheet & Insulated Panels

Insulation
PUF/Glass Wool Boards, 25-50 mm thick

Life Span
10-15 Years

Connection
Bolt & Welded joints

Material
Galvanized Iron (GI)

Roof Material
Galvanized Iron Sheets with Insulation

Door
1 or more, as per design

Thickness Of Wall Panel
50 mm (Customizable)

Window
2 or more, as per design

Window Style
Sliding

Floor Material
18 mm Marine Ply with PVC Vinyl Flooring

Floor Load
150 kg/m

Roof Dead Load
50 kg/m

Roof Live Load
75 kg/m

Earthquake Intensity
Up to Zone IV Compliant

Color
White & Blue (customizable as per requirement)

Use
Portable Site Office, Temporary Cabins

Base Frame
ISMC Steel Channel Framework

Floor Finishing
Anti-skid Vinyl Covering

Interior Surface
Laminated Plywood or Pre-finished MDF Panel

Ceiling Height
Approx. 7.5 to 8 ft

Customization
Partitions, furniture, pantries, and toilets on request

Ventilation
Provided via windows & louvered vents

Service Access
Access panel for electrical & plumbing maintenance

Standards
Complies with IS 2062 & international standards

Weight
Approx. 2400 kg for 20 ft unit

Fire Resistance
Fire Retardant Construction & Finishes

Electric Fittings
Pre-wired with LED lighting, switch boards, fans, and plug points

Exterior Finish
Epoxy/Powder Coated Paint for Weather Resistance

Mobility
Forklift pockets & lifting hooks for easy relocation

Assembly Time
Ready to use, no site fabrication needed

Waterproofing
Fully weather and leak proof structure

Air Conditioning Provision
Dedicated AC Points and Openings

GI PORTABLE Site Office CABINS Trade Information

Minimum Order Quantity
1 , , Piece

Supply Ability
1 , , Piece Per Day

Delivery Time
7 Days

About GI PORTABLE Site Office CABINS

At Kotharis we corresponds with clients for astute the precise specifications and spot-on requirements in order to design and install improved overall qualities of Site Office Container that is fabricated from high-strength components and by means of assembly line fabrication process for catering successfully to the demands. These provided site office cabins or site office security cabins are tested by a team of quality controllers on various parameters to deliver flawless range to the clients. These products are offered by us at industry leading price range that assures full client satisfaction.

Features OF GI PORTABLE SITE OFFICE CABIN:

Effortless to install at site
Light in weight
Simply uninstalled and transported
Unaffected by weather conditions
Skilled in building impressive structures
vigorous, secure and roomy structures

Superior Weather Resistance and Insulation

These site office cabins are crafted with galvanized iron panels and finished with epoxy or powder-coated paint to withstand harsh weather conditions. Insulated walls and roofing materials regulate temperature, while the waterproof design ensures all-year protection. This robust construction makes the cabins suitable for diverse climates and challenging outdoor locations.

Fully Equipped and Move-In Ready

Each unit is delivered pre-assembled and pre-wired, including LED lighting, fans, ample plug points, switch boards, and air conditioning provisions. The cabins are ready to use upon deliveryno onsite fabrication requiredsaving both installation time and labor. Forklift pockets and lifting hooks facilitate easy and safe relocation as project requirements change.

Customizable, Safe, and Long-Lasting

Accommodating specific project needs, optional partitions, office furniture, pantries, and toilets can be integrated as requested. Fire-retardant materials and finishes, combined with compliance to IS 2062 and international standards, provide safety assurance. Designed for longevity, these cabins offer a lifespan of 10-15 years with minimal maintenance, making them a cost-effective investment.

FAQs of GI PORTABLE Site Office CABINS:

Q: How are GI Portable Site Office Cabins delivered and installed at a worksite?

A: GI Portable Site Office Cabins are transported as fully assembled units. Thanks to built-in forklift pockets and lifting hooks, they can be efficiently unloaded and positioned at your site without the need for any additional onsite fabrication or assembly. Simply connect the electrical and plumbing services for immediate use.

Q: What customization options are available for these site office cabins?

A: You can request customizations such as internal partitions, modular office furniture, attached pantries, or toilet blocks. Additionally, door and window configurations, exterior and interior finishes, and cabin colors can be tailored to meet your specific requirements.

Q: What safety and weatherproofing features do these cabins offer?

A: The cabins employ fire-retardant walls and finishes, leak-proof insulated roofing, and anti-skid vinyl flooring for enhanced safety and comfort. The exterior epoxy or powder-coated paint adds further resistance to weathering, ensuring protection from rain, sunlight, and temperature extremes.

Q: Can air conditioning units be installed in these portable cabins?

A: Yes, the cabins are designed with specific provisions for air conditioning, including dedicated AC points and wall openings, allowing quick and secure installation of standard AC units as per user preference.

Q: How long is the expected lifespan of these office cabins, and what maintenance is required?

A: With robust construction, high-quality finishes, and full compliance to international standards, these cabins are designed to last 10-15 years. Routine checks on roofing, paintwork, and electrical systems ensure optimal condition, but minimal maintenance is typically required.

Q: Where can GI Portable Site Office Cabins be used?

A: These cabins are ideal for construction sites, industrial areas, temporary management offices, or as extra workspace in remote project locations across India. Their portability and durable construction make them suitable for a wide range of environments.

Q: What are the key benefits of choosing a GI Portable Site Office Cabin over traditional structures?

A: They ensure rapid deployment, cost-effectiveness, comprehensive safety features, and customization potential. Additionally, their mobility and minimal maintenance requirements make them an advantageous long-term solution for evolving project needs.
