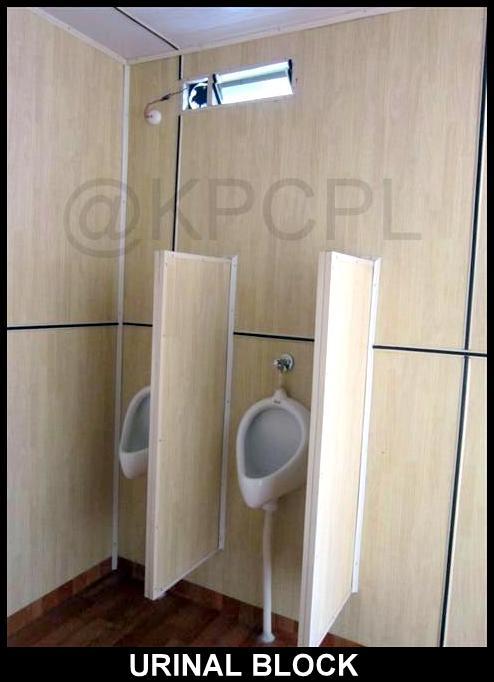

Portable Urinal Block
Portable Urinal Block

Portable Urinal Block

Price 75000- 200000 INR/ Piece

MOQ : 1 Piece

Portable Urinal Block Specification

  • Connection
  • Interlocking Panel/Steel Joints
  • Dimension (L*W*H)
  • Approx. 1200 mm x 1000 mm x 2300 mm
  • Wall Materials
  • High-Density Polyethylene Panels
  • Insulation
  • EPS Core
  • Door Material
  • PVC Door with Metal Frame
  • Life Span
  • 10 Years
  • Open Style
  • Swing
  • Window Material
  • Translucent Polycarbonate (for ventilation)
  • Material
  • UV Stabilized Polyethylene & FRP
  • Roof Material
  • Corrugated FRP Sheet
  • Door
  • Single PVC Door
  • Thickness Of Wall Panel
  • 35 mm
  • Window
  • One Vent Window
  • Window Style
  • Fixed
  • Floor Material
  • Anti-slip PVC Flooring
  • Floor Load
  • Up to 400 kg/sqm
  • Roof Dead Load
  • 60 kg/m
  • Roof Live Load
  • 125 kg/m
  • Earthquake Intensity
  • Up to 7 Richter Scale
  • Color
  • Blue and White
  • Use
  • Portable Urinal Block for Public Places, Events, Construction Sites
  • Maintenance
  • Easy to Clean; Stain/Corrosion Resistant
  • Type of Flush
  • Manual Push Flush
  • Number of Urinals
  • 2
  • Drainage System
  • Gravity Fed Outlet
  • Ventilation
  • Louvered Window & Roof Vent
  • Water Storage Tank Capacity
  • 250 Litres
  • Mobility
  • Integrated Lifting Hooks
  • Weight
  • Approx. 85 Kg
  • Base Frame
  • Galvanized Steel
  • Cleaning Access
  • Detachable Floor Panel
  • Electrical Provision
  • Pre-wired for LED Light


Portable Urinal Block Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Supply Ability
  • 1 Piece Per Day
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Containers
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2008 Certified Company.


About Portable Urinal Block

In order to fulfill the ever changing demands of our respected clients, we are engaged in offering superior quality Portable Urinal Block. Due to its compact size and efficient space, this is used at the outer of residential and commercial buildings. It is designed in line with industry standards using high quality materials. Also, this Portable Urinal Block is stringently examined under the observation of our quality associates to ensure its optimum strength.

Features:

  • Robust construction
  • Highly spacious
  • Optimal air ventilation system
  • Good strength & load bearing capacity
  • Low maintenance
  • Hygienic & spacious


Designed for Public Use and Mobility

This portable urinal block is crafted to meet the rigorous demands of public spaces, event grounds, and construction sites. Its integrated lifting hooks and interlocking panels allow easy transportation and setup. The unit remains stable and user-friendly thanks to its robust frame and anti-slip flooring, ensuring a safe experience for all users.


Superior Durability and Weather Resistance

With a galvanized steel base, UV-stabilized panels, and corrosion-resistant materials, the urinal block withstands varied and harsh weather conditions. Its roof and walls are engineered to handle significant loads and seismic activity up to 7 on the Richter scale, providing peace of mind in challenging environments.


Hygienic, Accessible, and Easy to Maintain

The urinal blocks detachable floor panel and stain-resistant surfaces make cleaning straightforward and efficient. Pre-wired lighting provisions ensure visibility even after dark, while effective ventilation reduces odors, resulting in a comfortable and hygienic environment for users.

FAQs of Portable Urinal Block:


Q: How is the portable urinal block transported and installed at different locations?

A: The unit is equipped with integrated lifting hooks and interlocking panel connections, making it easy to move and install at various public places, event venues, or construction sites. Its lightweight design (approximately 85 kg) simplifies relocation and setup.

Q: What measures ensure hygiene and odor control inside the urinal block?

A: The block features a louvered window, roof vent, and a detachable floor panel for enhanced ventilation and easy cleaning. All contact surfaces are stain and corrosion resistant, and the manual push flush system ensures proper waste removal.

Q: When should the water storage tank be refilled and how is maintenance performed?

A: The 250-litre water storage tank should be checked regularly and refilled based on usage frequency. Maintenance is straightforward due to the detachable floor panel, anti-slip PVC flooring, and stain-resistant materials, which allow for efficient cleaning and upkeep.

Q: Where is this portable urinal block most effectively utilized?

A: It is best suited for public spaces, outdoor events, construction sites, and temporary installations where permanent restroom facilities are unavailable or impractical.

Q: What type of drainage and plumbing system is incorporated?

A: The urinal block utilizes a gravity-fed outlet drainage system, ensuring reliable waste disposal without the need for complex plumbing or additional energy sources.

Q: How does the design ensure user safety and comfort?

A: With its anti-slip PVC flooring, robust galvanized steel frame, and earthquake-resistant structure, the urinal block promotes user safety. The single swing PVC door and ample interior space enhance accessibility and comfort.

Q: What are the advantages of the materials used in the construction of this urinal block?

A: The use of UV-stabilized polyethylene, FRP, and high-density polyethylene panels ensures long-term durability, resistance to weathering, and ease of maintenance. These materials contribute to the 10-year lifespan and reliable performance of the unit.
